CodeGrade launched AutoTest V2 in early 2023.
Interface of AutoTest V2
An AutoTest V2 configuration for a Python assignment has two stages:
- The Setup stage: this is where you setup the auto grading environment. You can install packages and upload files. This builds into an image on which all tests are executed. All the configuration here only runs once for all submissions;
- The Tests stage: this is what students will see and where you can configure all your tests that you want to run on every student’s code. Everything that you specify here is executed in the working directory of the student.
Steps are created in a “Scratch-like” block layout and can be dragged and dropped, reordered and nested to create an AutoTest program. We are continuously adding new blocks to AutoTest V2 to make it more powerful and easier.
AutoTest V2 is still available next to our original AutoTest, to start setting up an AutoTest V2 select AutoTest V2 when creating a new AutoTest. Already have an original AutoTest? You can switch to AutoTest V2 by deleting it and pressing "Select another version of AutoTest" to finally select AutoTest V2. Please note that your original AutoTest will be deleted when pressing the "Delete" button!
When developing your AutoTest V2 configuration, you can continuously test your configuration on the "Test Submission".
After configuring something, you press the “Build Snapshot” button in the bottom right corner of the screen. This will Build your AutoTest into a Snapshot (a history of your snapshots are available via the Snapshots tab).
After pressing "Build Snapshot", you can:
- Test the configuration by seeing the results in seconds.
- If you are ready to publish your AutoTest to your students press the big green Publish button.
- If you make any changes, you build again and if you are satisfied, you can republish them to your students.
- If you want to unpublish your snapshot, you can simply go to it in the green bar and press the red “Unpublish” button.
CodeGrade AutoTest V2 runs on Ubuntu (20.04 LTS) machines which you can configure in any way that you want. Common software is pre-installed, most importantly:
In the setup section of your AutoTest, you can install software or packages and upload any files you might need for testing. The setup section will build an image and is only run once for all submissions.
You can upload files using the "Upload Files" block, if you are intending on using Python Unit Testing fusing PyTest for instance, this is where you will upload your unit test file. These files will be placed in the
$UPLOADED_FILESdirectory on the Virtual Server.
You can install software and packages (or configure the build image in any other way) using the "Script" block. You may use a command like
python3 -m pip install pandasto install
pandas. Or run
python3 -m pip install semgrepif you are planning to use code structure tests using
semgrepin your tests.
Basic set up for an autograded Python assignment in AutoTest V2
Now that you have created the setup, it's time to create the actual tests. This is done on the Tests tab. Select one of the many test-blocks to configure a AutoTest V2 procedure in a "scratch"-like format. Some tests can be nested and you can chose to connect tests to rubric categories with a certain weight, you can also hide aspects of tests and enable internet access for specific tests.
IO Tests are great for console based programs and allow you to give an input to it and specify an expected output. The following will guide you to set up an IO Test:

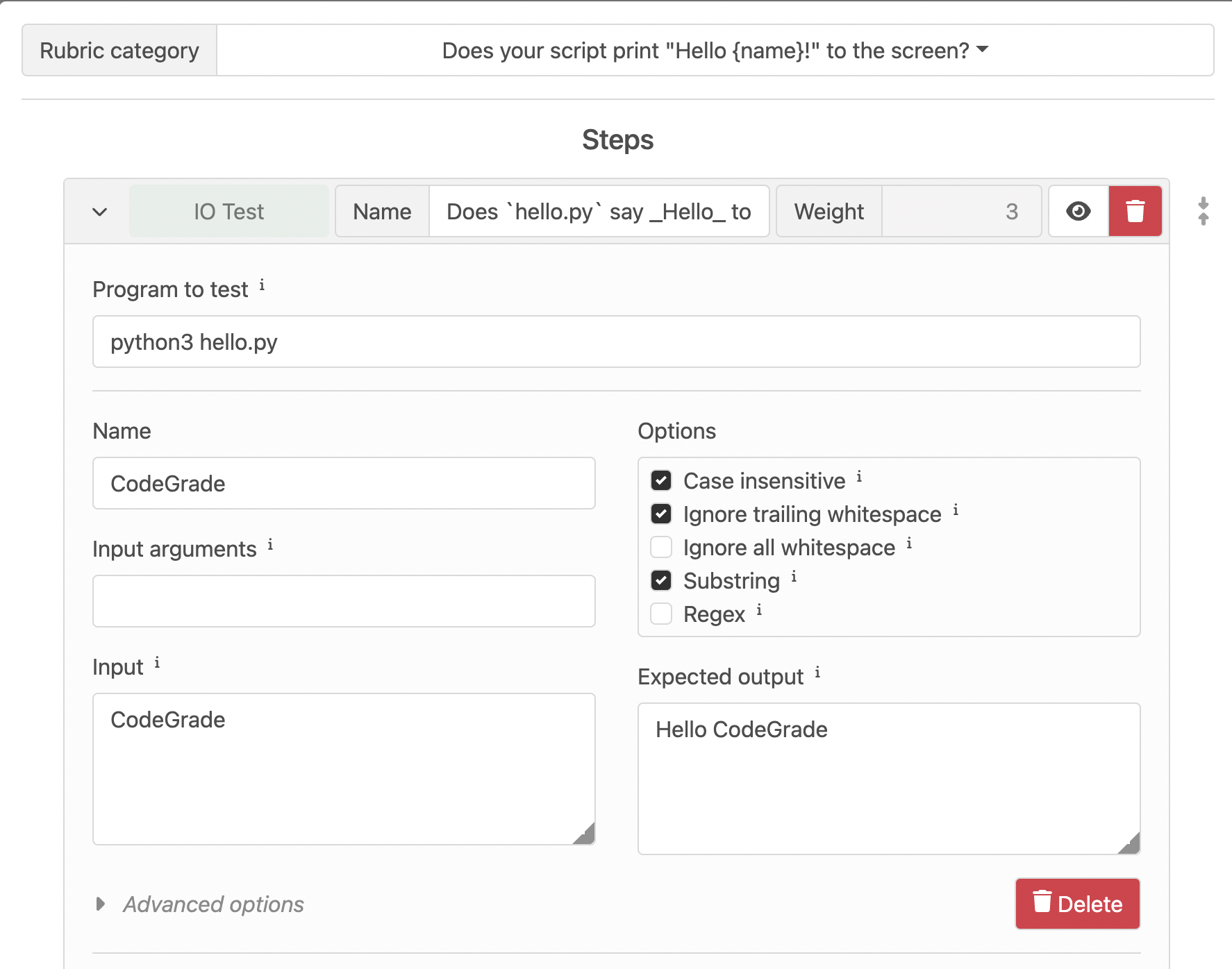

A basic IO Test to check the output for a Python program.
- 1.Drag the "IO Test" block to your Test Procedure. In the code section, write the command to execute, for Python this could be something like
- 2.Drag one or more "Simple Test" block(s) inside your "IO Test" block. Specify an Input (given via
stdin/ standard input) and an Expected Output.
- 3.Give clear names to the numerous blocks you have created to make clear to the students what is being tested.
- 4.Optionally: drag in a "Connect Rubric" block and drag your "IO Test" block in this, to connect it to a rubric category and use it to grade your students.
In Python, you can also execute the student's program interactively and specify Python code as input.
Using an IO Test to run Python code and check individual functions.
- 1.In the code section write
python3 -ic "import calculator"where you replace calculator with the name of the student's program (without the
- 2.This will import everything in their program and allow you to access variables and call any functions they create. All Input fields now accept valid Python code, as this is now input to the Python Interpreter.
- 3.As Input, print out any variable or result of any function written by the student and check this against the Expected Output.
Upload a PyTest unit test file in the Setup tab, it can then easily be used to check the students' code. Until the "Unit Test" block is available in AutoTest V2, we have created a simple wrapper script to use PyTest unit tests easily in AutoTest V2.
Imagine students have to code a very simple calculator in a file called
def add(x, y):
ans = x + y
def subtract(x, y):
ans = x - y
def multiply(x, y):
ans = x * y
def divide(x, y):
if y == 0:
raise ValueError("Can not divide by zero!")
ans = x / y
A powerful way to test the individual methods, is to write unit tests. In this example, we can test the student's code with the following unit tests in a file called
assert calculator.add(3, 2) == 5
assert calculator.add(1, -1) == 0
assert calculator.add(-1, -1) == -2
assert calculator.subtract(5, 2) == 3
assert calculator.subtract(1, -1) == 2
assert calculator.subtract(-1, -1) == 0
assert calculator.multiply(3, 2) == 6
assert calculator.multiply(1, -1) == -1
assert calculator.multiply(-1, -1) == 1
assert calculator.divide(10, 2) == 5
assert calculator.divide(1, -1) == -1
assert calculator.divide(-1, -1) == 1
assert calculator.divide(5, 2) == 2.5
run_pytest.pyscript to run PyTest in AutoTest V2.
- 1.Upload the PyTest unit test file and the
run_pytest.pyscript (download above) to AutoTest V2 under the Setup tab. Also: install PyTest using
pip3 install PyTestin a "Script" block.
- 2.Continue under the Tests tab: create and drag "Custom Test" block, using the
run_pytest.pyscript we can run our Unit Test in here.
- 3.In the code field, use the uploaded wrapper script as follows:
python3 $UPLOADED_FILES/run_pytest.py $UPLOADED_FILES/test_calculator.py. Of course, always replacing
test_calculator.pywith the name of your uploaded unit test script.
- 4.Optionally: Use a "Connect Rubric" block to connect your unit tests to a rubric category.
A PyTest unit test connected to a rubric in AutoTest V2.

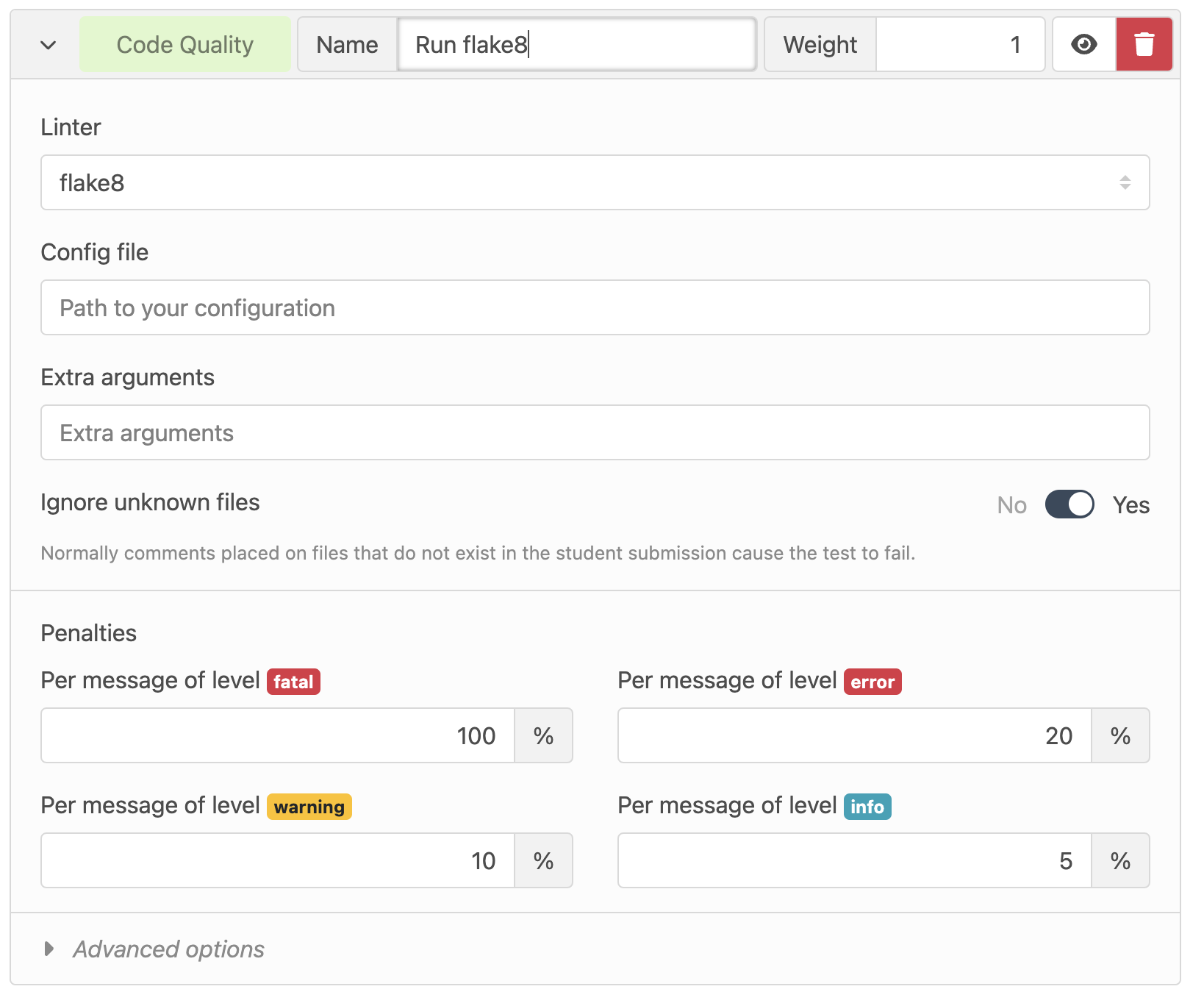

Automatically run static code analysis on the student's code, using Flake8. Until the "Code Quality" block is available in AutoTest V2, we have created a simple wrapper script to use Flake8 easily in AutoTest V2.
This will then run automated quality checking on the student's code and assign a score. Code Quality comments will appear for students on the lines of code in their file, making it very easy for them to review them.
Code Quality feedback in CodeGrade
run_flake8.pyscript here to run Flake8 in AutoTest V2.
- 1.Upload the Flake8 script (
run_flake8.py, download above) to AutoTest V2 under the Setup tab. Also, in a "Script" block, install Flake8 via
pip3 install flake8.
- 2.Continue under the Tests tab: create and drag "Custom Test" block, using the
run_flake8.pyscript we can run Flake8 here.
- 3.In the code field now use the wrapper script as follows:
python3 $UPLOADED_FILES/run_pytest.py <STUDENTFILE> <MAX ERRORS>. Max errors indicates the number of errors that lead to
0.0points, other scores are calculated linearly based on this.
- 4.Optionally: Use a "Connect Rubric" block to connect your code quality check to a rubric category.
A Flake8 test connected to a rubric in AutoTest V2.
CodeGrade integrates a tool called Semgrep to make it easy to perform more complex code analysis by allowing you to write rules in a human readable format. You can provide generic or language specific patterns, which are then found in the code. With its pattern syntax, you can find:
- Equivalences: Matching code that means the same thing even though it looks different.
- Wildcards / ellipsis (...): Matching any statement, expression or variable.
- Metavariables ($X): Matching unknown expressions that you do not yet know what they will exactly look like, but want to be the same variable in multiple parts of your pattern.
Semgrep can be installed in the Setup step using
pip3 install semgrep. The easiest way to use Semgrep in AutoTest V2 is via our
structure.pyscript (this will be built-in in a later version). With this script, you will write your Semgrep patterns directly in the Input field in an IO Test. Try out Semgrep patterns using their online editor here:
For instance, this is a pattern to detect a for-loop in the student code:
for $EL in $LST:
structure.pyscript to run Semgrep in AutoTest V2.
- 1.Under the Setup tab, upload the
structure.pyfile you can download above. Also, in a "Script" block, install Semgrep via
pip3 install semgrep.
- 2.Continue in the Tests tab: first drag the "IO Test" block to your Test Procedure. Execute the script in the code field, follow:
python3 $UPLOADED_FILES/structure.py <STUDENTFILE>. For a fibonacci assignment, this could be:
python3 $UPLOADED_FILES/structure.py fibonacci.py.
- 3.Create and drag one or more "Simple Test" block(s) inside your "IO Test" block. Each block is one Semgrep structure to check. As Input write the Semgrep pattern (including
pattern:or similar like
pattern-either:). If you want to check if the student uses
pattern: import numpy.
- 4.As Expected Output write "Found!" if the student code should match or "Not found!" if the student code should not contain the pattern (e.g. students are not allowed to use
- 5.Optionally: Use a "Connect Rubric" block to connect your structure check to a rubric category.
- 6.Optionally: Use a "Hide" block to hide the "config" (i.e. input / pattern) of your tests so that students cannot see the pattern you are checking for.
A Semgrep structure check in an IO Test in AutoTest V2 (with optional Hide block to hide the pattern).
Once you have created a configuration, create a Snapshot to test it on a "Test Submission". In the General Settings, you should have already uploaded a Test Submission, so you will see the results of this straight away.
Once everything works as expected, press the green "Publish to students" button to publish your AutoTest V2 to students. If they use the editor they can run it instantly, and if they hand in in any other way they will get their AutoTest results instantly after any submission.
